Pipe Force Series Product Specs

Part # HDF11390RCC

-Weight: 267 lbs

-Finish: Black Textured Powder Coat

-Comes with a welded in 2” receiver.

-1 year powder coat warranty.

-Works with factory tow hooks

-Works with factory fog lights.

-Comes with Install Instructions, Nuts, & Bolts


-Will not work on a truck that has a body lift kit installed.

-May not work with custom fender flares.

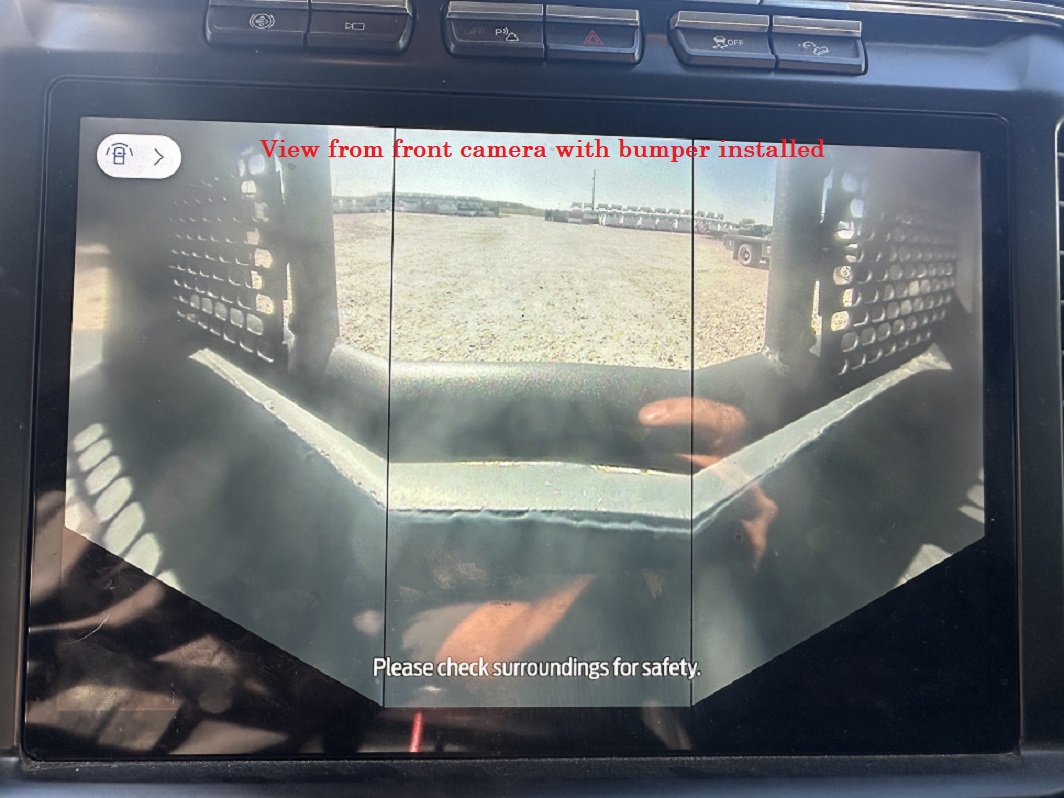

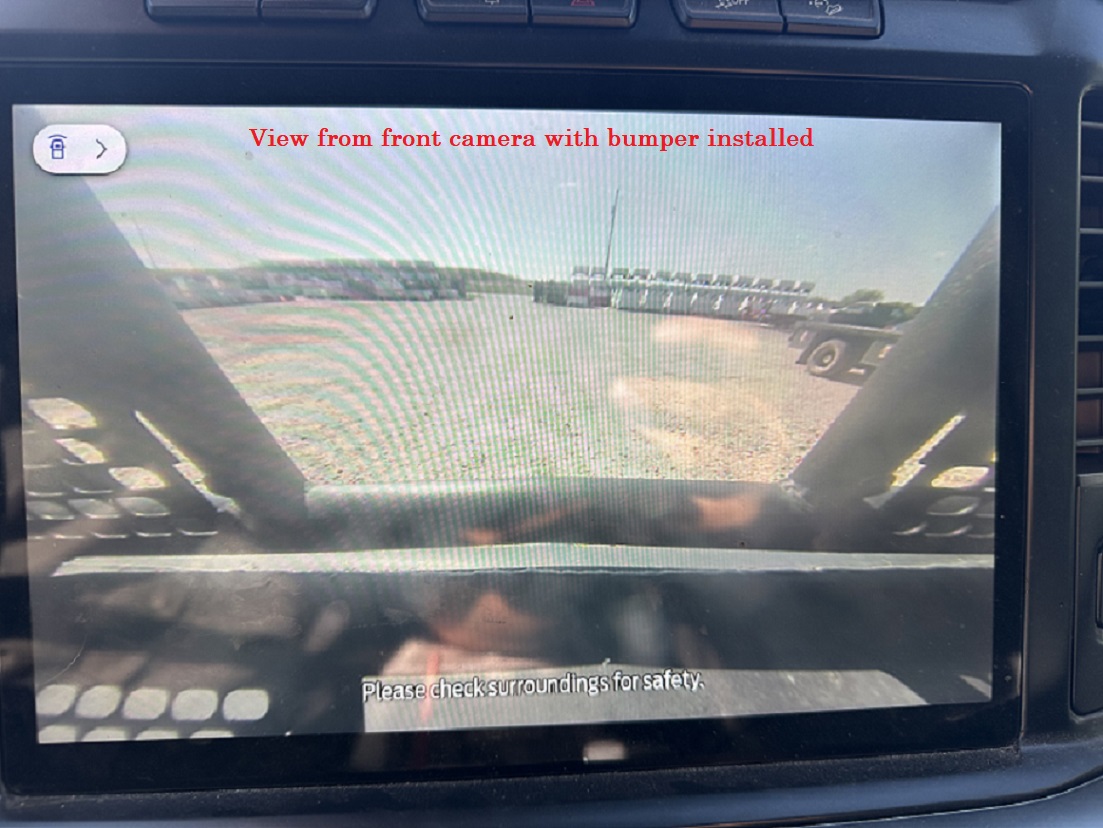

-Supports front emblem mounted camera with removable lower center grille section. The view from the front camera will still be obstructed somewhat.

-Supports Adaptive Cruise Control module in the driver’s side tow hook hole. If you have this module installed you will not be able to use the drivers side tow hook.

The bumper has holes for the front park assist sensors to fit in, but the sensors will NOT function correctly when installed. They will need to be turned off. If you don’t have sensors, there are plugs for the holes.

Construction Materials
Main 4.5” Pipe Schedule 40
Grille Guard Tubing 2” 16 gauge
Grille Guard Wings 1.5” 14 gauge
Smooth Plate  10 gauge
Brackets 7/16”

Download Installation PDF here

Pipe Force Series HDF11390RCC
